Elevator Bolts
Elevator Bolts
Elevator Bolts Manufacturer & Supplier in India

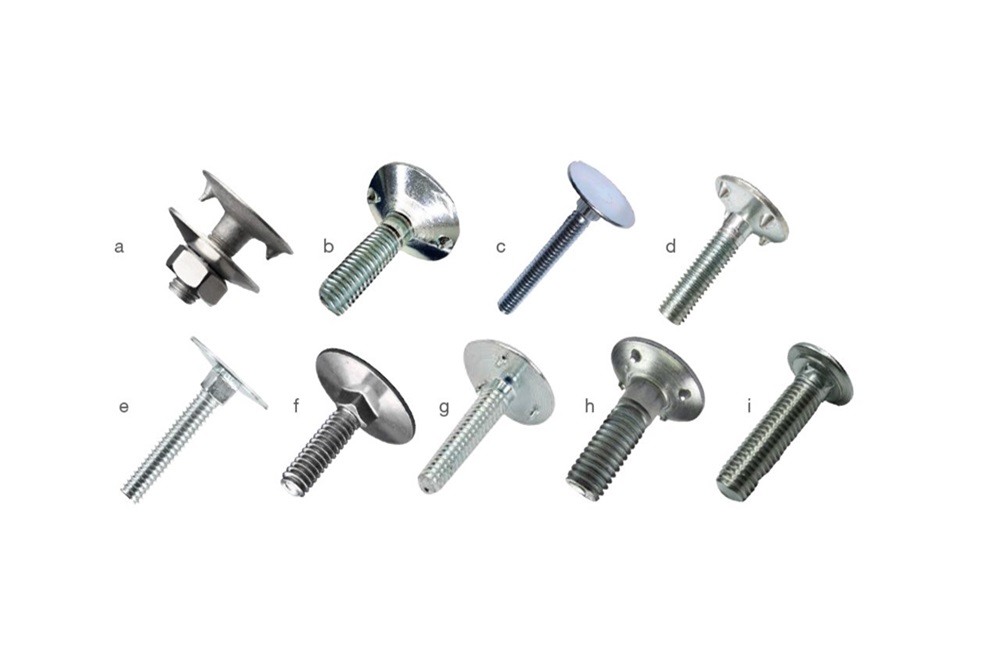

Elevator Bolts are flat-headed bolts designed for use in industrial, construction, and conveying systems. Known for their flush finish and secure fastening capabilities, they are widely used in automotive, agricultural, structural, and mechanical environments where low-profile bolt heads are essential.
Top Quality Elevator Bolts
AN Fasteners is a prominent Elevator Bolts manufacturer and exporter in India, delivering superior-quality products manufactured to meet global standards. We offer a vast range of sizes, materials, and surface treatments to suit various industrial needs.
Specifications of Elevator Bolts
International Standards
ASME, DIN, ISO, BS, IFI, UNI, IS, Polish PN, EU, CSN, SAE
Size Range
- Metric: M2 to M160
- Imperial: 3/8″ to 8″
- Custom lengths available upon request
Material Options
- Stainless Steel: Grades 304, 316, 321, 347, 904L, etc.
- Carbon Steel: ASTM A335 (P1 to P91)
- Alloy Steel: B6, B7, B7M, B16, GR6, 2H, 2HM
- Nickel Alloys: Inconel, Monel, Hastelloy, Nimonic
- Other Materials: Silicon Bronze, Brass, Copper, Aluminium Bronze
Coating Options
- PTFE Coated
- Hot-Dip Galvanized
- Zinc Plated (Yellow, Blue, Black)
- Nickel Plated
- Black Phosphate
- Aluminium Zinc Flake Coated
Manufacturing Process
- Forging: Hot Forged & Cold Forged for enhanced durability
- Thread Types: UNC, UNF, ISO, BSW, ACME
- Threading Options: Fully Threaded & Partially Threaded
Tensile Strength Grades
- Available in: 8.8, 10.9, 12.9, 14.9
Common Elevator Bolt Standards & Sizes
| Standard | Size Range |
|---|---|
| ASME B18.2.1 | 3/8″ to 3″ |
| BS 1769 | 1/2″ to 2″ |
| ASME B18.2.3.6M | M12 to M36 |
| DIN 6914, ISO 7412 | M12 to M36 |
| UNI 5712, DIN-EN 14399-4 | M12 to M36 |
Popular Elevator Bolt Sizes in Stock
- 3/8″-16 x 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″
- 1/2″-13 x 1-1/4″, 2″, 2-1/2″, 3″
- 5/16″-18 x 1″, 1-1/4″
- 1/4″-20 x 1″
- 5/8″-11 x 2-1/2″, 3″, 4″
- 3/4″-10 x 2-1/2″, 3″
Custom sizes are manufactured based on client requirements and are available in bulk packaging for smooth supply and export.
Applications of Hollow Hex Bolts
- Material Handling Systems – Conveyor belts, elevator buckets, agricultural and grain-handling machinery
- Construction & Infrastructure – Used in docks, bridges, elevators, and structural frameworks
- Automotive & Machinery – Secure bolting in low-clearance or flush-mount applications
- Heavy-Duty Equipment – Ideal for mining, marine, and industrial mechanical systems
Elevator Bolts Properties
| Forming | Hot & Cold Forged |
|---|---|
| Metric Size | M10 to M100 |
| Imperial size | 3/8″ to 8″ |
| Threads | UNC, UNF, ISO, BSW, ACME |
| Standards | ASME, DIN, ISO, BS, UNI, EN, IFI |
| Sub Types |
1. Fully Threaded Elevator Bolts 2. Partially Threaded Elevator Bolts 3. Metric Elevator Bolts 4. Imperial Elevator Bolts |
Why Choose AN Fasteners for Elevator Bolts?
✅ Precision Engineering with Tight Tolerances
✅ High Corrosion Resistance for Industrial Environments
✅ Available in Standard & Custom Configurations
✅ Bulk Export-Ready with Global Supply Network
✅ Competitive Pricing with Consistent Quality
📩 Need Custom Elevator Bolts?
Contact AN Fasteners today for expert advice, competitive quotes, or bulk order inquiries. We ensure timely delivery and unmatched product reliability for every industry we serve.
