Double End Threaded Stud
Double End Threaded Stud Bolts
Double End Threaded Stud Bolts Manufacturer in India

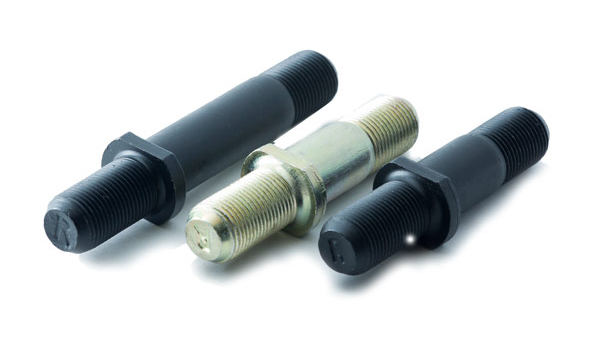

Double End Threaded Studs are versatile fasteners threaded on both ends with an unthreaded center section. These studs are designed for applications requiring precise alignment and strong tension in structural and mechanical assemblies. Commonly used in automotive, construction, refinery, and heavy engineering sectors, these studs provide excellent performance in high-load and high-temperature conditions.
Premium Quality Double End Threaded Stud
At AN Fastener Supplier, we specialize in manufacturing and exporting Double End Studs in a wide range of sizes, materials, and finishes, fully customized to meet client specifications.
Specifications of Double End Threaded Stud
International Standards
ASME B18.31.2, ASTM A193 / A194, DIN 976, ISO, BS, IS, SAE, IFI
Available Sizes
- Metric: M6 to M100
- Imperial: 1/4” to 4”
Length Range
Custom lengths from 20mm to 1500mm or as per drawing
Threading
- Equal or unequal length threads
- Custom thread tolerance & class
- UNC, UNF, Metric, BSW, ACME
Materials & Grades
🔹 Stainless Steel
- SS 304, 316, 316L, 321, 347, 310S, 904L
🔹 Carbon Steel
- ASTM A105, A36, AISI 1018, 1020, 1045
🔹 Alloy Steel
- ASTM A193 Grade B7, B7M, B16, L7, L7M
- ASTM A194 Grade 2H, 2HM, 4, 7, 8, 8M
🔹 Duplex / Super Duplex
- UNS S31803, S32205, S32750, S32760
🔹 Nickel Alloys
- Inconel 600, 625, 718
- Monel 400, K500
- Hastelloy C22, C276
🔹 Non-Ferrous Metals
- Brass, Copper, Aluminium Bronze, Silicon Bronze, Phosphor Bronze
Surface Coating Options
- Hot Dip Galvanized
- PTFE / Xylan Coated
- Zinc Plated (Yellow / Blue / Black)
- Black Oxide
- Nickel Plated
- Cadmium Plated
- Aluminium Zinc Flake Coating
Applications of Double End Studs
- Flanged pipe connections
- Valve & pump assemblies
- Heavy machinery mounting
- Power plants & heat exchangers
- Automotive engine blocks
- Structural steel and civil engineering projects
Double End Stud Bolts Properties
| Forming | Hot & Cold Forged |
|---|---|
| Metric Size | M10 to M100 |
| Imperial size | 3/8″ to 8″ |
| Threads, | UNC, UNF, ISO, BSW, & ACME, |
| Standars | ASME, BS,DIN,ISO,UNI,DIN,-EN |
| Sub Type |
1. Fully Threaded Double End Stud Bolts 2. partial Threaded Double End Stud Bolts 3. Metric Double End Stud Bolts 4. Imperial Double End Stud Bolts |
Why Choose AN Fasteners for Double End Stud Bolts?
- Extensive inventory and ready-to-dispatch stock
- Fully customizable studs as per drawing or sample
- ISO-certified with stringent quality checks
- Competitive pricing with global shipping capability
- Trusted by clients in oil & gas, power, and infrastructure sectors
📩 Need customized Double End Threaded Studs?
Let us help you with technical support and quick delivery.
